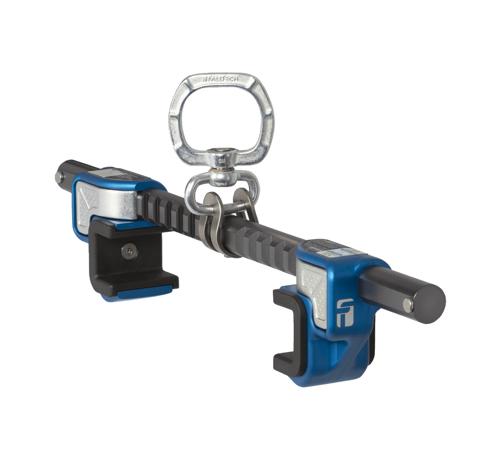

Designed for easy installation onto existing steel structures, these rugged fall protection anchors offer a high degree of mobility. Choose bolt-on, weld-on, or beam clamping configurations for permanent or temporary (reusable) applications. Made from plated alloy steel, stainless steel, or aluminum, FallTech® fall protection anchors give you the durable performance you demand.

Features

• Includes two sizes of replaceable wear pads: traditional short wear pads for all applications and new long wear pads for a true hands-free, snag-free walking experience in trailing applications
• Features aluminum crossbar and steel clamping jaws with wear pads
• Fits beam flanges from 4" to 14" wide and up to 1-1/4" thick
• Dual adjusting jaws include concealed locking thumb latches
• Alloy steel D-ring remains centered on crossbar
• For temporary mobile use on horizontal I-beams
• Complies with ANSI Z359.18-2017

Specifications

• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Aluminum alloy
• Wear Pads: Nylon
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.
• ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
